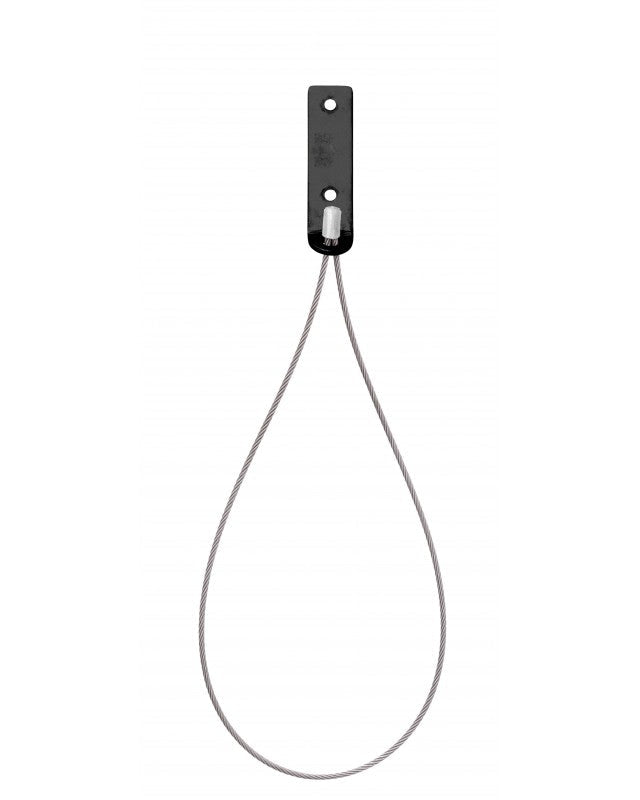

KRATOS Roof Safety Tile Anchor - 1No User

The Roof Tile Safety Anchor Point offers a simple and reliable way to create permanent fall protection on pitched roofs. From the beginning, the design allows installers to fit the anchorage neatly beneath roof tiles. As a result, the system improves safety without changing the look of the roof.

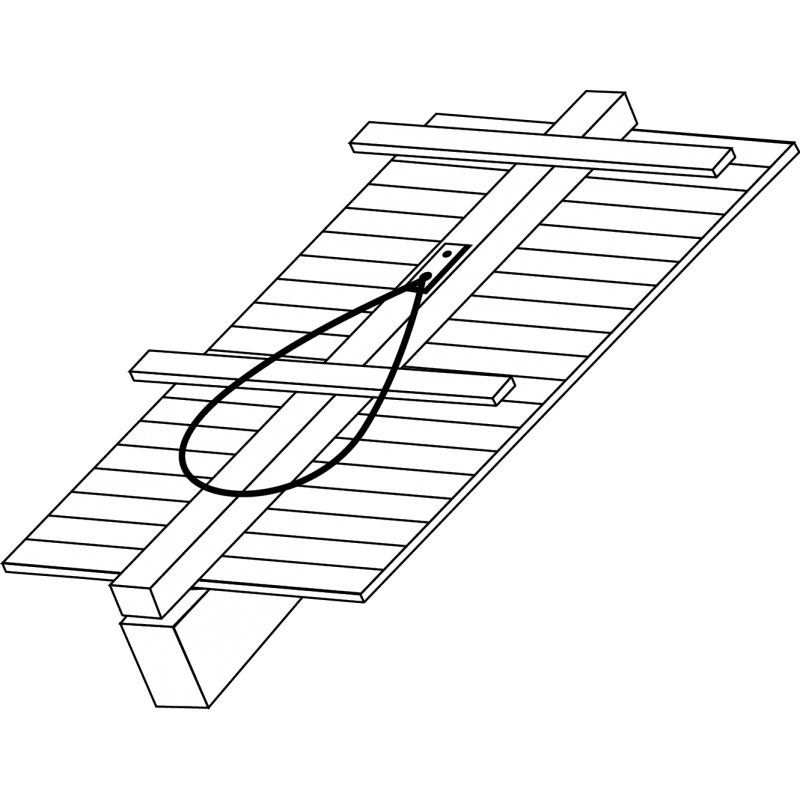

First, installers fix the anchorage directly to a timber structure using suitable zinc-plated wood screws (Ø 8 mm). To ensure a secure fixing, the timber must measure at least 75 × 100 mm. Once installed, the anchorage can remain in place permanently. Therefore, only the stainless steel cable loop stays visible above the tiles, making connection easy while keeping the system discreet.

In addition, the Roof Tile Safety Anchor is lightweight, which makes handling and installation quicker. The wire rope loop measures 40 cm in length with a 4.8 mm diameter, giving users a clear and secure attachment point. At the same time, the anchorage supports one user, which suits roof access, inspection, and maintenance tasks.

Most importantly, the anchorage meets EN 795:2012 Type A requirements. Furthermore, it delivers a static strength greater than 12 kN and a breaking strength greater than 20 kN, providing confidence when working at height.

Key features of the Roof Tile Safety Anchor:

• Permanent anchorage for installation beneath roof tiles
• Discreet design with only the wire rope visible
• Lightweight and easy to install
• Suitable for timber roof structures
• Secure connection point for one user

Technical specifications:

• Part number: AP-FA6003004
• Material: Stainless steel wire rope, galvanised steel fixing plate
• Wire rope length: 40 cm
• Wire rope diameter: 4.8 mm
• Users: 1
• Standard: EN 795:2012 Type A
• Static strength: > 12 kN
• Breaking strength: > 20 kN

Ultimately, the Roof Tile Anchorage Point delivers a discreet, compliant, and reliable solution for permanent roof safety.

Product Downloads:

• Installation Instructions
• DECLARATION OF CONFORMITY
