KRATOS Vertical Anchorage D-Bolt - 4 Users

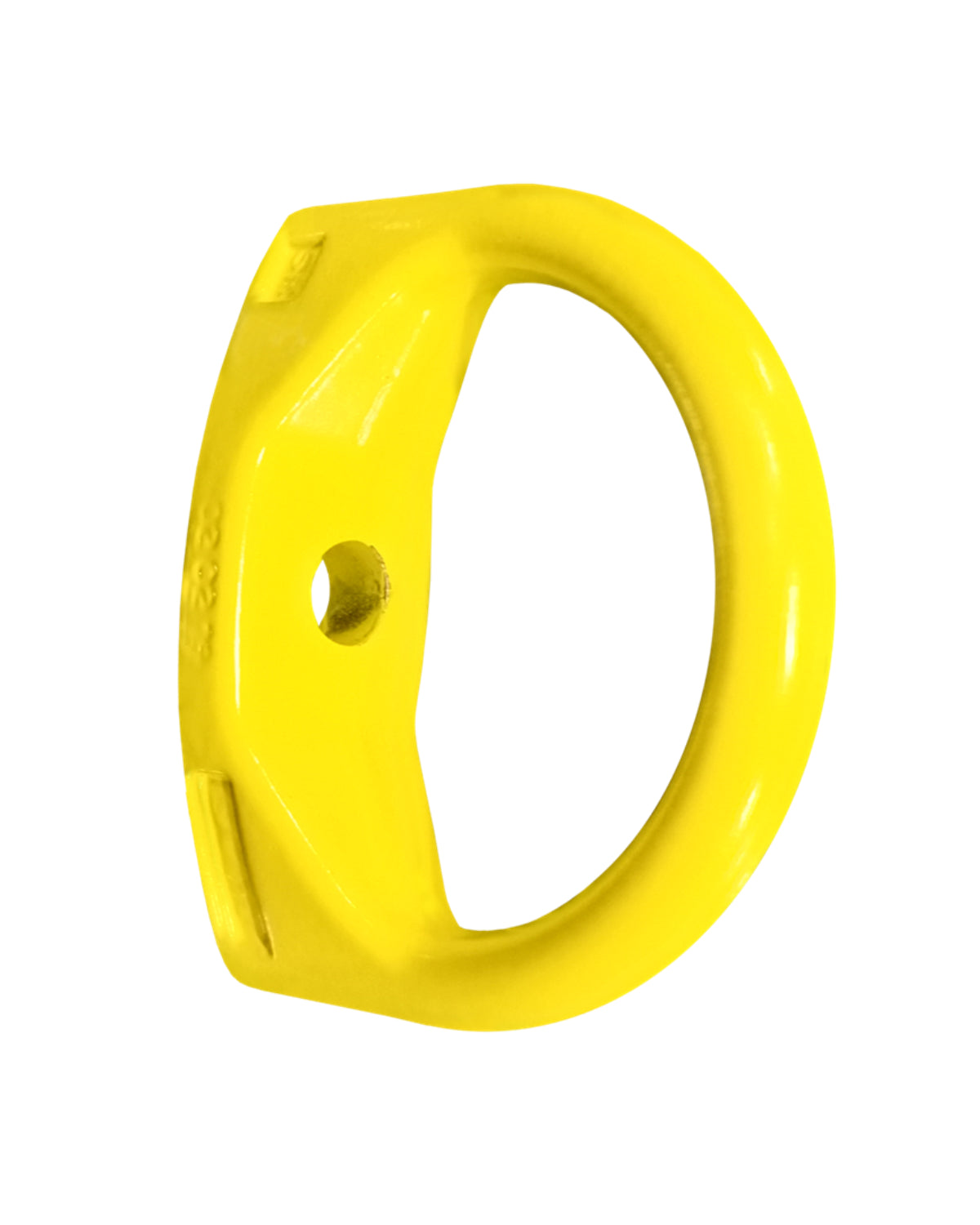

The Vertical Anchorage D-Bolt provides a robust and reliable anchorage solution for fixation to steel structures where safe working at height is essential. Designed for installation on vertical surfaces, the D-Bolt delivers a secure attachment point for personal fall protection systems across a wide range of industrial environments.

Manufactured from forged steel, the anchorage offers high strength and long-term durability. In addition, the powder-coated yellow finish improves visibility and allows easy identification during inspections and site audits. Installers can mount the D-Bolt directly to steel using M12 fasteners (not included), allowing flexible integration into existing structures.

The D-Bolt supports up to four users simultaneously, making it suitable for maintenance teams and shared access areas. Furthermore, the anchorage meets the requirements of EN 795:2012 Type A, ensuring compliance with recognised European safety standards. With a static strength of 12 kN and a minimum breaking strength of 23 kN, the system delivers dependable performance under demanding conditions

Key features of Vertical Anchorage D:

• Vertical anchorage point for steel structures
• Forged steel construction for maximum durability
• High-visibility yellow powder coating
• Suitable for up to four users
• Simple installation on vertical surfaces

Technical specifications:

• Part number: AP-FA6001401
• Standard: EN 795:2012 Type A
• Static strength: 12 kN
• Minimum breaking strength: 23 kN

The Vertical Anchorage D-Bolt offers a reliable, compliant solution for secure anchorage on steel structures.

Product Downloads:

• Declaration of Conformity
