SOLL Load Arrester 10m - Galv. Wire - 500kg (6-2000L)

The SOLL Load Arrester 10 m Galvanised Wire (500 kg) provides controlled load protection for overhead lifting and movement applications. From the outset, the unit delivers reliable load arrest without use on personnel, making it ideal for industrial and production environments. As a result, it suits applications where safe load control is essential.

First, the SÖLL load arrester operates in a similar way to an inertia reel or fall arrest block. However, it is designed specifically for loads, not people, while still meeting the EN 360 standard. In addition, the 5 mm galvanised steel cable offers durability and resistance to wear, even in demanding conditions. At the same time, the zinc-plated steel housing protects the internal mechanism and supports long service life.

Moreover, the unit supports loads up to 500 kg, or 1,000 kg when used with a pulley, which increases flexibility across different setups. The integrated fall indicator, featuring a clear inspection window with red and green markers, allows quick visual checks before use. Furthermore, the unit operates reliably in temperatures from -30°C to +50°C, making it suitable for a wide range of environments.

The SÖLL Load Arrester is commonly used in stage and theatre productions, automotive manufacturing, commercial laundries, and engineering facilities. With annual inspection by a Miller Service Point, the unit can achieve an unlimited service life.

Key features and benefits fo the SOLL Load Arrester 10 m:

• Load arrester for non-personnel applications
• Galvanised steel cable for durability
• High-strength zinc-plated housing
• Integrated fall indicator with inspection window

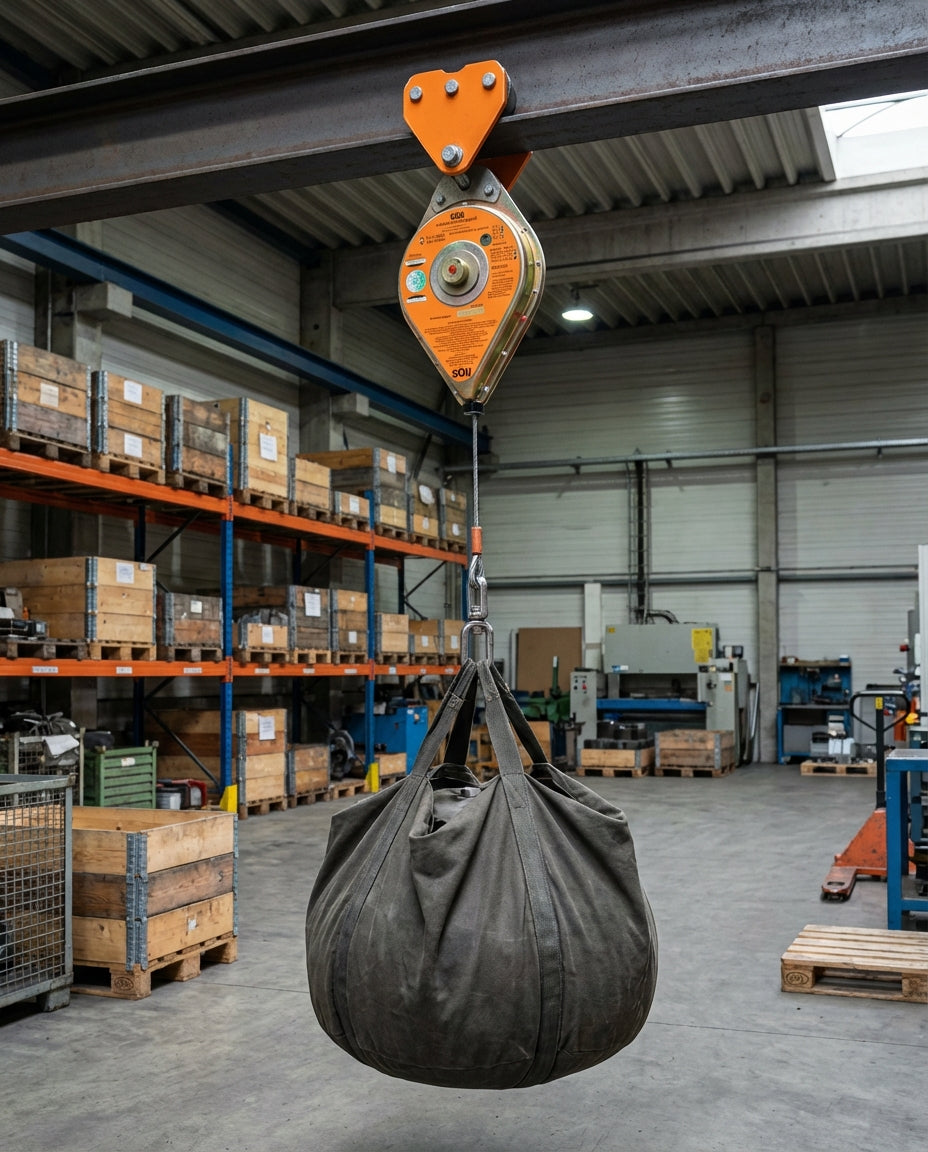

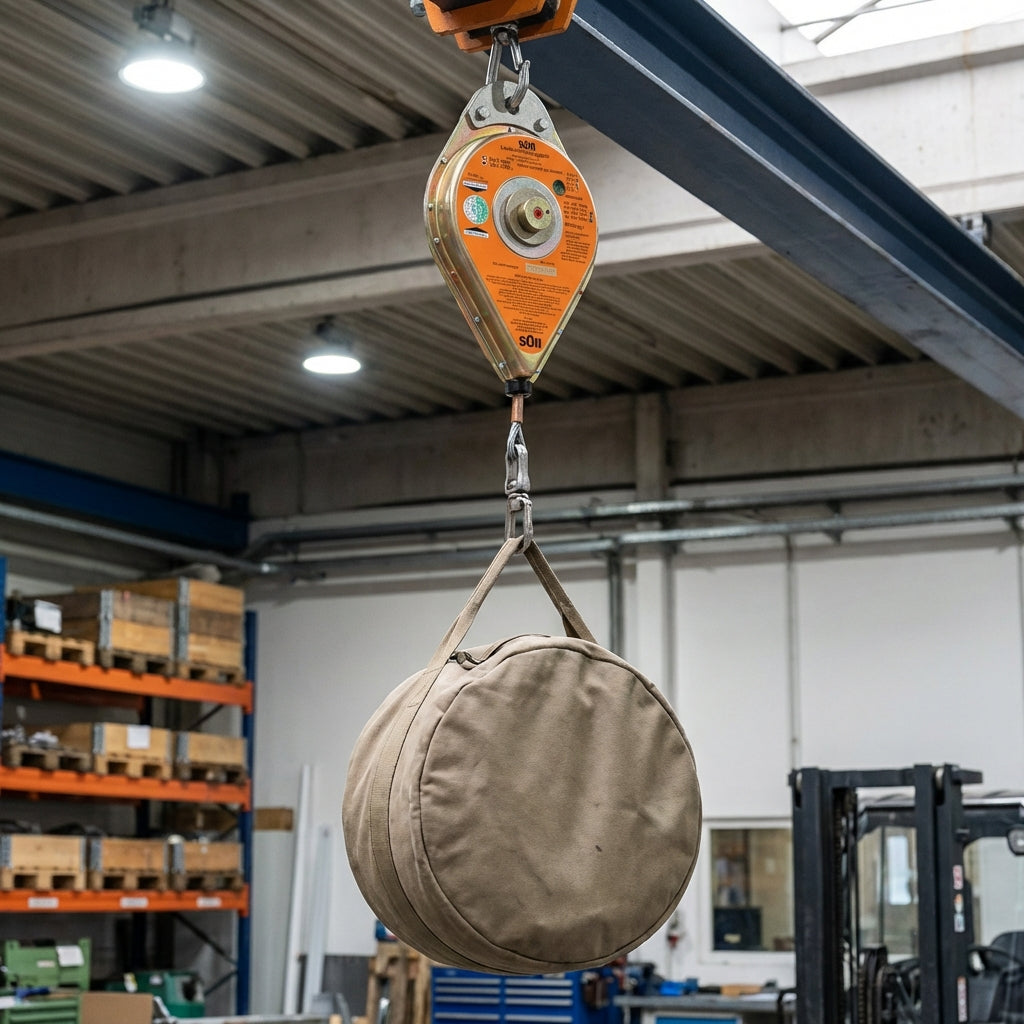

• Suitable for overhead applications
• Long service life with annual inspection

Technical details:

• Cable length: 10 m
• Maximum load: 500 kg (1,000 kg with pulley)
• Cable diameter: 5 mm

Arrest speed:

• TA version: 0.65 m/s
• TB version: 0.5 m/s

Dimensions: 385 × 240 × 140 mm

Weight: 11.3–14 kg

Operating temperature: -30°C to +50°C

Available versions and part number:

• 10 m: LAB-1006603

In summary, the SÖLL Load Arrester delivers durable, controlled load protection for demanding industrial applications.
